Products

UNIO POWER ELECTRONICS realizes and offers:

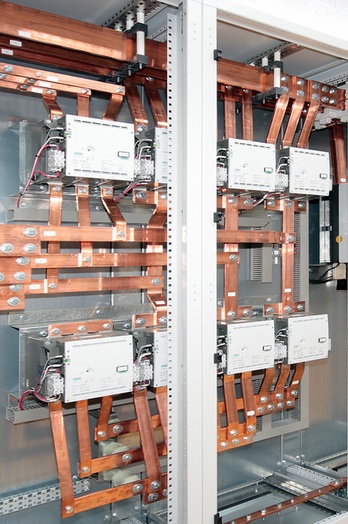

Electrical traction

Our DC switchgears for electrical traction are projected and realized in conformity to the highest sector’s standards: CEI EN50122-1/2 CEI EN50123-1/2/3/6 CEI EN50328 CEI EN60529.

General electrical characteristics:

• nominal tension: 750–1500-3600 V

• Nominal tens : until a 5000 A

• Stopping power: until a 200 kA (750Vcc)

• Internal arch durability: 50kA x 300 msec

Protection degree:

• IP3X for the external shell

• IP2X for the other sectors (shutters included)


Power Shield - device with blinded metallic shell, for inside, conform to EUROPEE EN 50123.

With total extractible devices on trolley for easy maintenance with lower managing costs.

The extraction positions that can be assumed by the power devices in the cell are:

On

• normal working position with main circuits connected


Selected trial

• power circuits not connected and auxiliary circuits connected


Selected out of order

• power circuits not connected and auxiliary circuits not connected


Rails Switchgears

in extractible armoured version and certificates

• Feeders switchgears

• Bipolar selection switchgears

• Negative switchgears and measure

• Rectifier switchgears

• SCADA and communication

• BT/MT switchgears

• Inverter

• Customizable size


Industry

As systems integrator we gained a lot of experiences in various industrial automation fields, making projected control systems with monitoring and wiring of devices

UNIO POWER ELECTRONICS offers also a new implants installation and activation service made by our qualified personnel, a post-selling service taking care of devices maintenance, and a specialist support for any working problem of the given systems.

Our commodities sectors:

1. ENERGY

2. ENVIRONMENT

3. MANIFACTURING

4. PACKAGING




Engineering

• Realizably studies

• Functional and technical analyses

• Realization of project documents

• Integration solutions

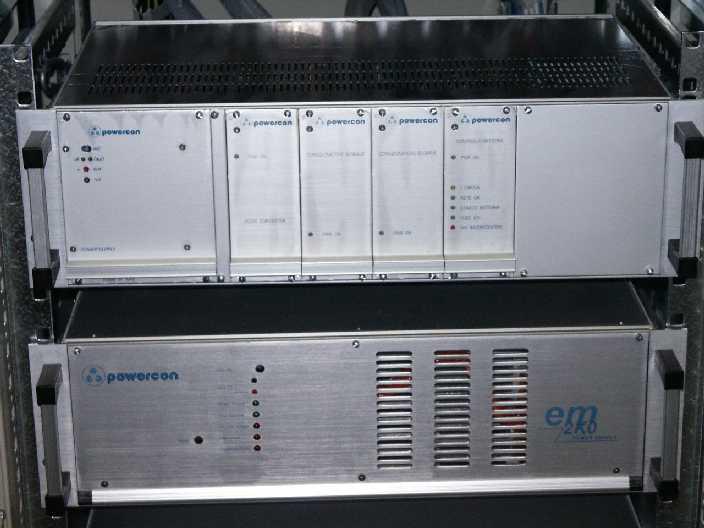

Power supplies in families

AC/DC Power supplies with an entrance power supply range from 110/220 Vcc:

1. Power supplies systems in rack or standard closets

2. EMB Series for panel with power from 25÷3Kw

3. SMB Series for omega bar Din from 25÷400W

4. EM Series from standard rack 19” from 25÷3KW

5. Custom Power supplies

6. Military Power supplies

7. Naval Power supplies

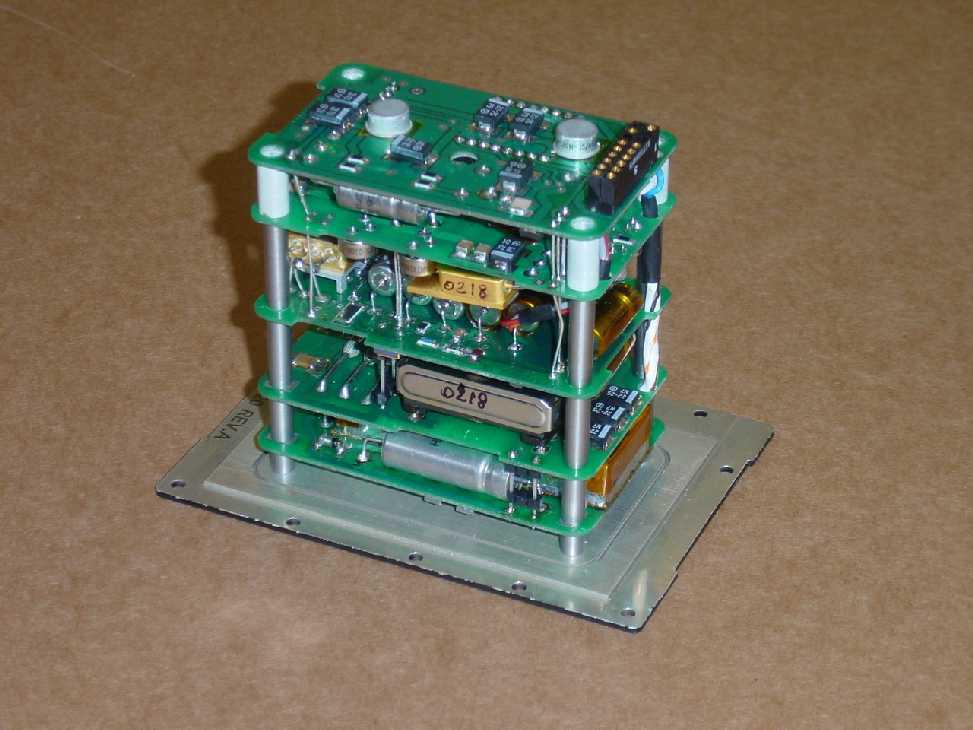

DC/DC converters with an entrance power supply range from 24Vcc a 600 Vcc:

1. Converter systems in rack or standard closets

2. CEMB Series

3. CSMB Series

4. CEM Series

5. Custom converters

6. Military converters

Power supplies systems

Complex and customized supplies systems with combination of AC/DC power supplies and our production converters for a vast range of application in the following sectors:

1. Naval

2. Military

3. Energy

4. Transport

5. In particular we realize any kind of power supply following customer's needs

Energy Stations

1. Stazioni di Energia SEB Series with power from 25÷50KW

Inverter

1. IEM Series sinusoidal wave from 100VA to 250KVA

2. IEMP Series sinusoidal programmable and parallel-able

3. Custom Inverters

4. Military Inverters

5. Rail Traction for applications

Multi-phase Choppers

1. Panel series from 25W ÷ 400KW

2. Solar cells rulers from 200W ÷ 250KW

Battery charger

1. From 19” rack series programmable in local - remote

Energy plant systems

1. “All inclusive” Energy generation systems handling from renewable energy for civil and industry
